MOVE HEAVY LOADS WITH SAFETY AND PRECISION

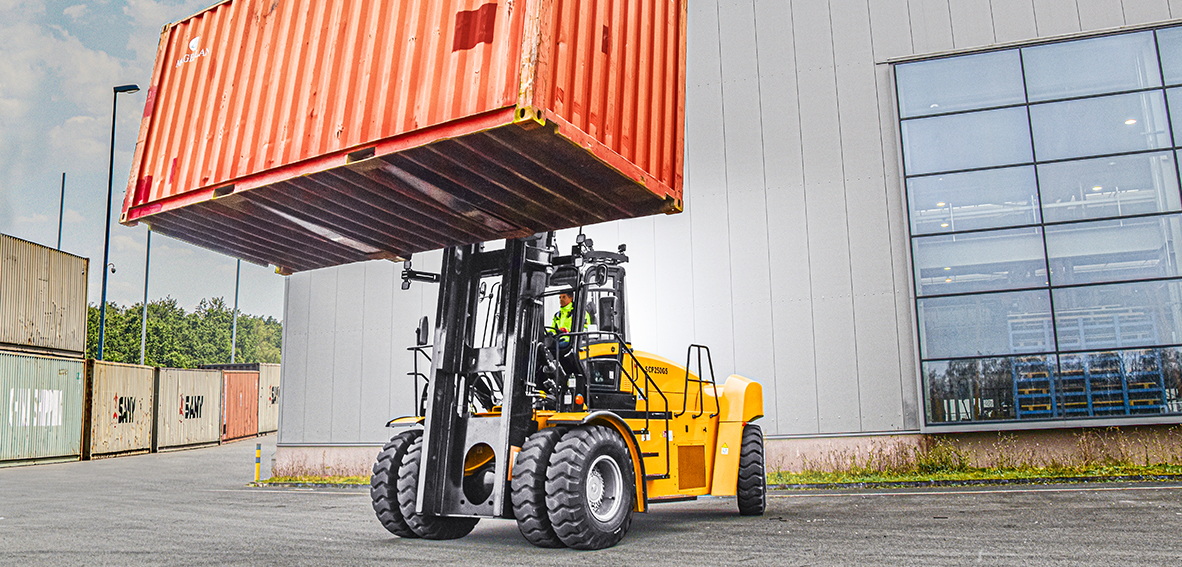

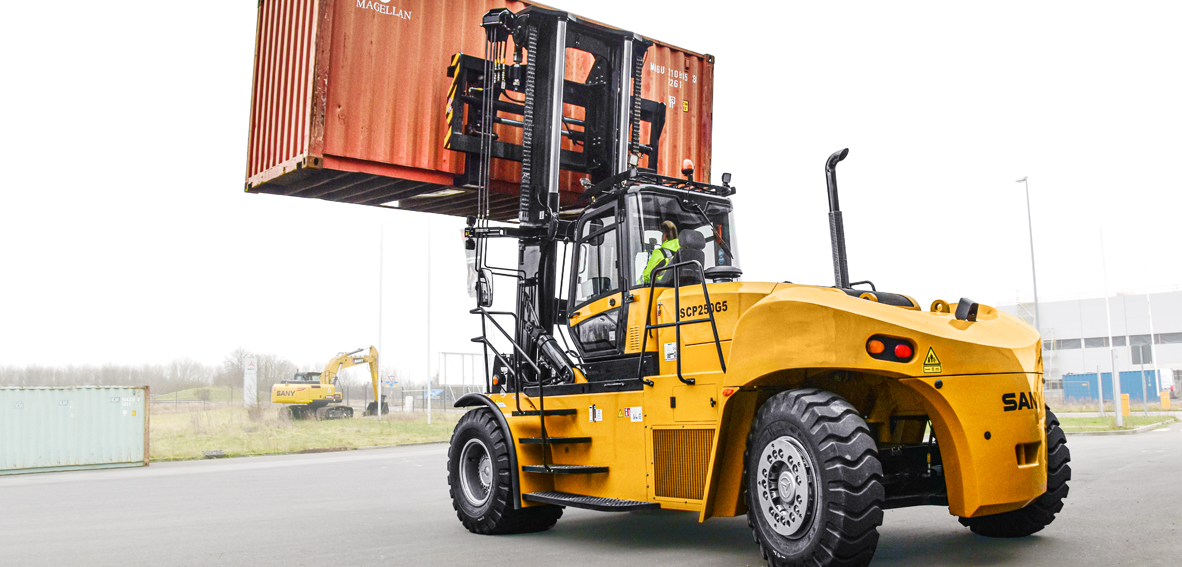

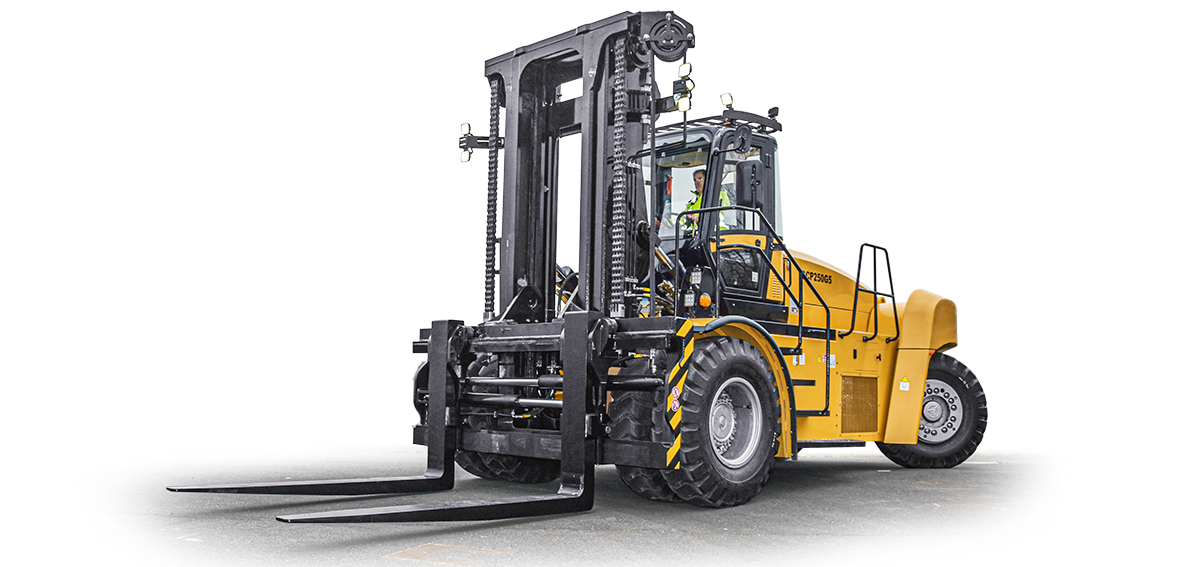

The SANY heavy-duty forklift is in its element when heavy loads need to be moved. In the port, at the sawmill or in the steelworks, when loading precast concrete parts or wind energy components – it impresses wherever loads need to be moved and positioned precisely. With its self-produced box frame, it is particularly stable and, thanks to proven components, is in its element, especially during continuous use under the toughest operating conditions. Optimum weight distribution ensures stability. The double-acting steering cylinder and the steering angle for tight curves ensure agile manoeuvring. In this way, the robust heavy-duty forklift combines precise and safe lifting, moving and positioning of loads with low operating costs.
| ENGINE | ||
| Power | 185 / 2 200 | kW / rpm |
| TRAVEL AND LIFTING POWER | ||
| Lifting capacity | 25 000 | kg |
| Lifting speed without/with load | 350 / 320 | mm/s |
| Descent speed without/with load | 500 / 500 | mm/s |
| Lifting height, standard | 4 000 | mm |
| Lifting height, optional | 6 000 | mm |
| DIMENSIONS | ||
| Total length | 8 791 | mm |
| Overall width | 3 100 | mm |
| Overall height | 4 300 | mm |
| Outside turning radius | 6 000 | mm |
