COMPACT AND STRONG, THE PERFECT COMBINATION

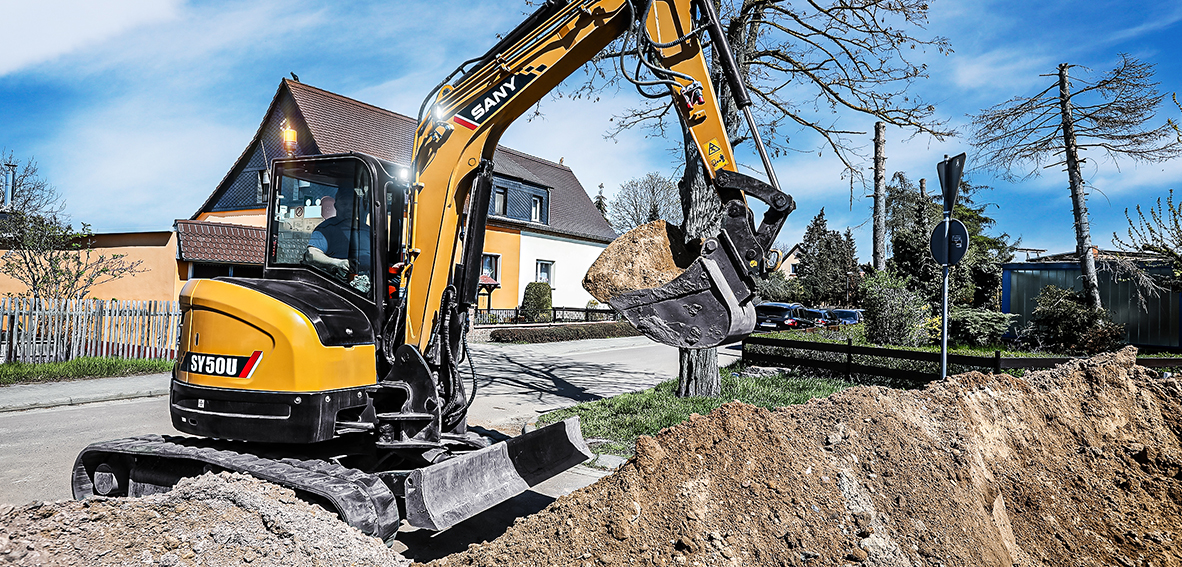

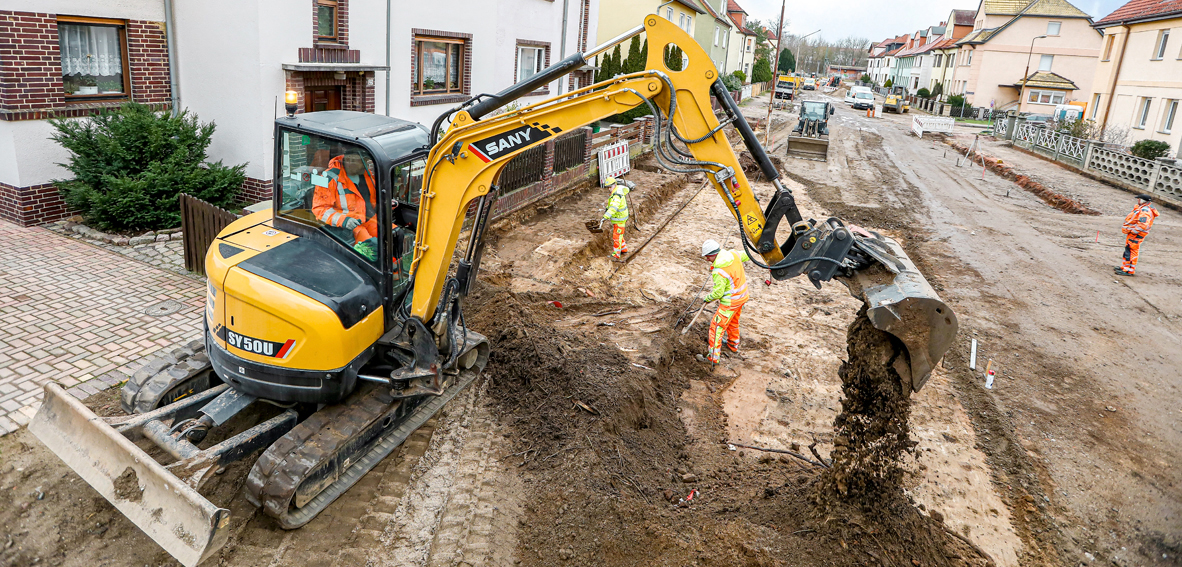

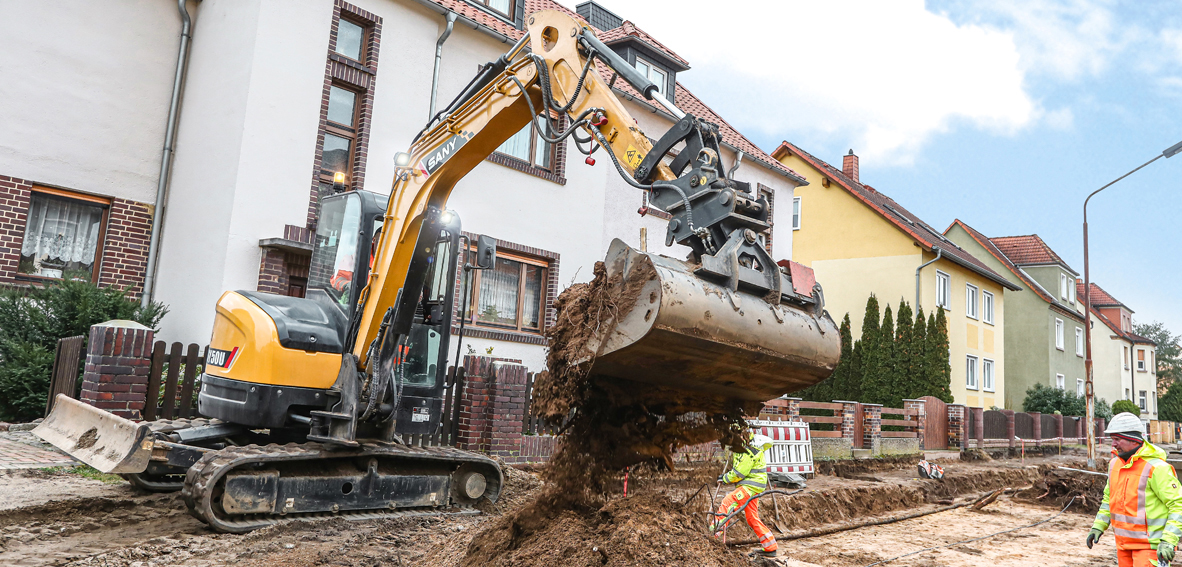

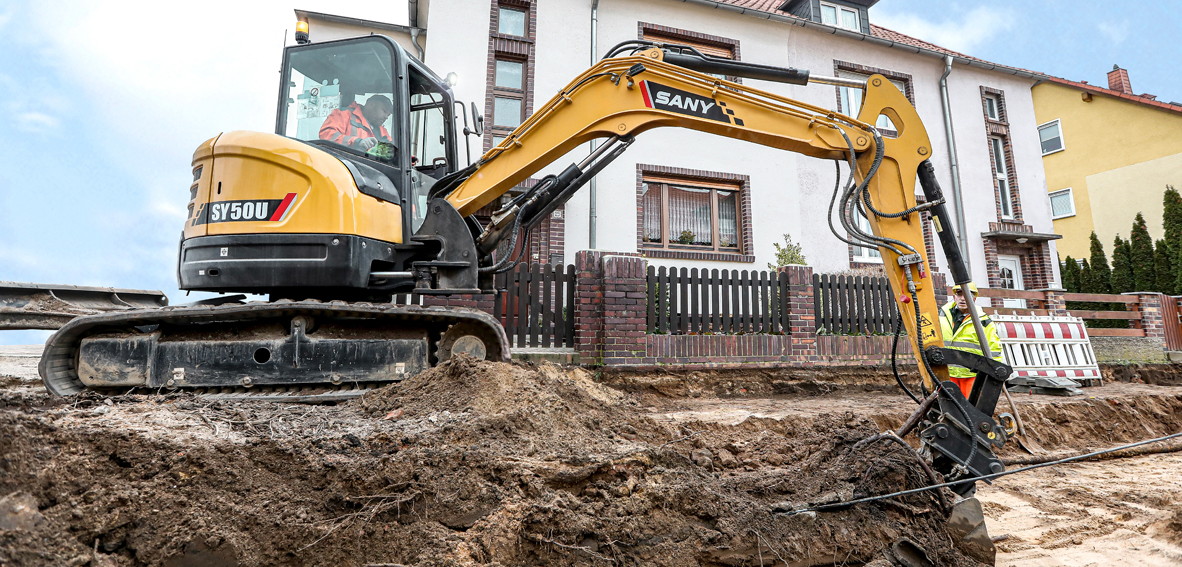

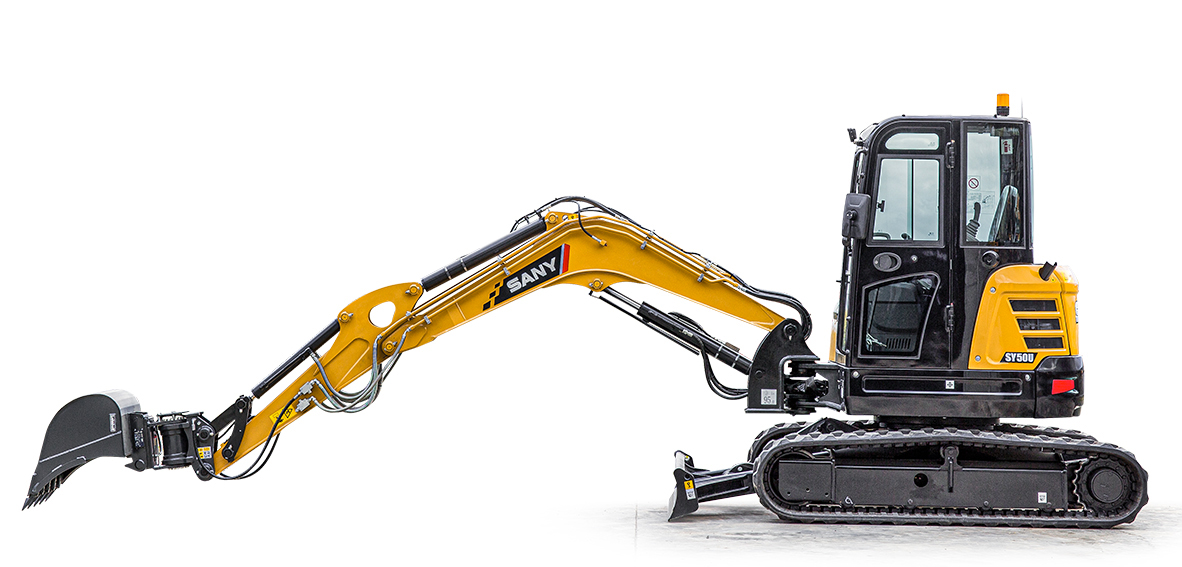

The SANY SY50U is a real powerhouse. With its compact design, it is right at home on urban construction sites and in any other particularly tight spaces. Its high performance and versatility guarantee productivity.
| DIMENSIONS | ||||
| Operating weight | 5 300 | kg | ||
| Bucket capacity | 0.152 | m³ | ||
| Lunghezza transport | 5 390 | mm | ||
| Long-distance transport | 1 960 | mm | ||
| Overall height | 2 630 | mm | ||
| ENGINE | ||||
| Power | 29.1 | kW | 2 400 | rpm |
| WORKING RANGE | ||||
| Max. excavation depth | 3 420 | mm | ||
| Maximum range | 5 880 | mm | ||
| Min. turning radius | 2 520 | mm | ||
| ISO bucket breakout force | 32.5 | kN | ||
| ISO arm pulling force | 22.9 | kN | ||
| HYDRAULIC SYSTEM | ||||
| Max oil flow | 138.6 | l/min |
